How to Clean a Diaphragm Carburetor: Clogged Jets, Cleaning Tips, and Maintenance Checklist

If your small engine suddenly becomes hard to start, idles rough, or dies under load, a dirty diaphragm carburetor with clogged jets is one of the most common causes. Learning proper diaphragm carburetor cleaning can restore smooth power, save repair costs, and extend the life of your equipment.

What a Diaphragm Carburetor Does

A diaphragm carburetor meters fuel and air for small engines using a flexible diaphragm instead of a traditional float. This design is common on chainsaws, string trimmers, leaf blowers, and other handheld tools that operate in multiple positions.

The diaphragm responds to pressure changes from engine vacuum to pull fuel through tiny passages and jets.
When dirt, varnish, or old fuel blocks these passages, the engine starves for fuel, floods, or runs erratically.

Because the passages are so small, even a partial blockage can create symptoms that feel like a major engine failure, which is why regular cleaning small engine carburetor routines are essential.

Signs Your Diaphragm Carburetor Is Dirty

Recognizing the symptoms early helps you decide when diaphragm carburetor cleaning is necessary.

Common signs include:

Hard starting or needing excessive choking to stay running.
Engine stalls at idle or bogs when you open the throttle.
Surging RPM, poor power, or excessive smoke from a rich mixture.
Engine runs only on choke, a classic symptom of clogged carburetor jets restricting fuel flow.

If the engine has been stored with old fuel for months, assume deposits have formed and plan a full cleaning small engine carburetor service, not just a quick spray into the intake.

Safety Prep and Tools You Need

Before touching the carburetor, set up a safe, clean workspace.

Work in a well‑ventilated area away from open flames; carburetor cleaner and fuel are highly flammable.
Wear safety glasses and gloves to protect from solvent and compressed air.
Shut off the engine, disconnect the spark plug, and turn off the fuel valve or clamp the fuel line to prevent accidental starting or leaks.

Useful tools and supplies for diaphragm carburetor cleaning:

Carburetor cleaner spray formulated for fuel systems.
Compressed air (canned or from a compressor) for blowing out passages.
Small screwdrivers, nut drivers, and needle‑nose pliers.
A soft brush and clean rags for exterior cleaning.
Fine wire or a dedicated jet‑cleaning set for stubborn clogged carburetor jets, never oversized drills that enlarge the holes.
Rebuild kit with gaskets and a new diaphragm if the existing parts are stiff, cracked, or damaged.

Step‑by‑Step Diaphragm Carburetor Cleaning

This section walks through a general process for cleaning a small engine diaphragm carburetor. Always check your equipment’s manual for model‑specific details.

1. Remove and Inspect the Carburetor

Clean dirt from around the carb and air filter housing before removal so debris does not fall inside.
Remove the air filter, disconnect throttle and choke linkages, fuel lines, and mounting hardware, then lift the carburetor free.
Inspect hoses, primer bulb, and gaskets for cracks or leaks; replace damaged parts as part of your carburetor maintenance checklist.

2. Disassemble Carefully

Diaphragm carbs have tiny screws and layered gaskets, so work over a tray and take photos as you go.

Remove the cover plate on the diaphragm side by loosening the screws evenly.
Lift off the cover, then gently separate the diaphragm from the gasket; if stuck together, carefully peel them apart without stretching the material.
On the metering side, remove components like the needle valve, spring, lever, and any small strainers following the order they were installed.

Keep parts organized in the order removed to make reassembly easier and avoid mixing up jets or screws.

3. Clean the Diaphragm and Gaskets

The diaphragm itself controls fuel metering, so it must be flexible and clean.

Inspect the diaphragm for stiffness, cracks, pinholes, or warping; replace it if there is any visible damage or if it feels brittle.
Wipe the diaphragm and gaskets with a lint‑free cloth if only lightly soiled; avoid harsh solvents that can swell or weaken the material.

If the carburetor is older or the engine sat with bad fuel, installing a new diaphragm and gasket set is often more reliable than trying to reuse worn parts.

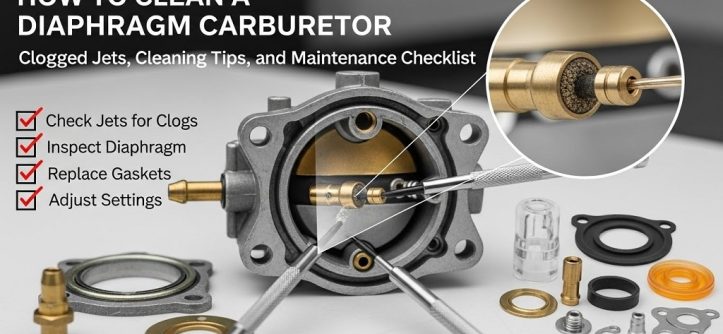

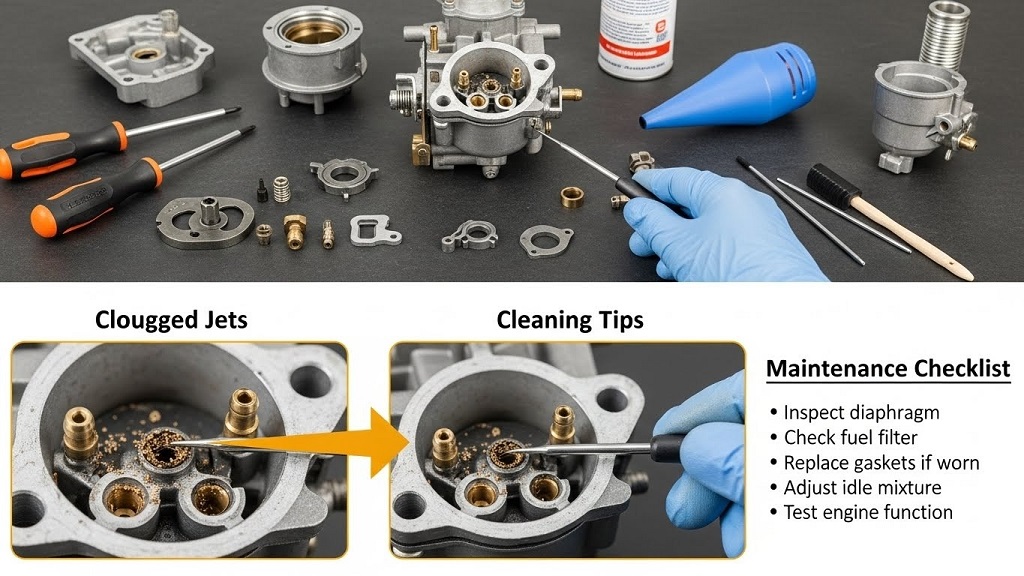

4. Clear Clogged Carburetor Jets and Passages

Clogged carburetor jets are usually the main reason a small engine runs poorly.

Remove the main and pilot (idle) jets using the correct screwdriver; these are tiny brass parts, so handle them gently.
Spray carburetor cleaner directly through each jet and into its passage until fluid flows freely from the outlet.
Use a fine wire or a dedicated jet‑cleaner tool to gently clear any remaining deposits, but never force a large tool through that can enlarge the jet.
Blow compressed air through each jet and passage to confirm they are completely open.

Also clean the internal fuel screens or strainers if present, because these can plug and mimic the symptoms of clogged jets.

5. Clean the Carburetor Body

Once the small parts are removed, focus on the main carburetor body.

Spray cleaner into every port, channel, and cavity, especially where the diaphragm seals and where fuel enters from the fuel line.
Scrub varnish or deposits with a soft brush, then flush with more cleaner until runoff is clear.
Use compressed air to blow out all passages and drying surfaces completely so no solvent remains trapped.

For extremely dirty units, some technicians use ultrasonic cleaners to deep‑clean the body and jets, but for most DIY jobs, careful spray and air cleaning is enough.

6. Reassemble and Reinstall

Reassembly is the reverse of disassembly, but attention to detail is critical.

Reinstall jets, needles, springs, and levers, making sure each part sits correctly and screws are snug but not overtightened.
Place the new or cleaned diaphragm and gasket in the correct order and orientation before installing the cover plate.
Reattach the carburetor to the engine, reconnect fuel lines and linkages, and reinstall the air filter assembly.

Once everything is back together, turn on the fuel, check for leaks, and start the engine. Fine‑tune idle speed and mixture according to the manual as the final step in your diaphragm carburetor cleaning process.

Carburetor Maintenance Checklist

Using a simple carburetor maintenance checklist keeps your small engine running reliably and reduces how often you need deep cleaning.

Here is an example checklist you can adapt:

Use fresh, clean fuel and add fuel stabilizer for seasonal equipment to reduce varnish buildup.
Run the engine dry or shut off the fuel and let it stall before long‑term storage to empty the carb bowl and passages.
Inspect and replace the air filter regularly so dust does not enter the carburetor.
Check fuel lines, primer bulb, and gaskets for cracks, soft spots, or leaks every few months.
Perform external cleaning small engine carburetor service with spray cleaner to remove dirt and grime from linkages and the exterior housing.
Schedule a full internal cleaning and possible rebuild at least every season in dusty conditions or if you notice performance changes.

Embedding this carburetor maintenance checklist into your regular service routine dramatically cuts down on sudden no‑start issues and keeps your tools ready to work.

Common Mistakes to Avoid

Even experienced DIYers make a few predictable errors when working on diaphragm carburetors.

Mistakes to watch out for:

Poking jets with oversized drills or hard steel tools that can permanently enlarge or deform the openings.
Mixing up diaphragm and gasket order, which prevents proper sealing and causes erratic fuel metering.
Overusing strong solvents directly on rubber and plastic parts, shortening their lifespan.
Reassembling without replacing obviously worn diaphragms or hardened gaskets, leading to repeated issues.

Taking your time, keeping parts organized, and following the manufacturer’s instructions will give far better results than a rushed cleaning.

Quick Reference Table: Symptoms vs Likely Carb Issues

Engine symptom	Likely carburetor issue	Helpful action
Needs choke to run, then stalls	Lean condition from clogged carburetor jets	Remove jets, perform full diaphragm carburetor cleaning and jet clearing.
Surging idle, hunting RPM	Dirty idle passages or air leak	Clean idle circuits, inspect gaskets and hoses.
Black smoke, strong fuel smell	Rich mixture, stuck needle, or worn diaphragm	Inspect diaphragm, needle valve, and metering parts.
Hard starting after storage	Varnish deposits and old fuel	Clean small engine carburetor, refresh fuel, check filters.

This quick view helps connect what the engine is doing to the likely carburetor fault, so you can decide when to clean and when to rebuild.

FAQs about Diaphragm Carburetor Cleaning

How often should I clean a diaphragm carburetor?

For equipment used regularly, a basic carburetor inspection every season and a more thorough cleaning every year is a good starting point, especially in dusty environments. If you store machines for long periods with fuel inside, expect to clean the carb more frequently because deposits form faster.

Can I clean a diaphragm carburetor without removing it?

Light external cleaning and spraying cleaner into the intake can help minor issues, but it does not remove deposits from internal jets and passages. For persistent hard starting, surging, or stalling, removing the carburetor and performing a full diaphragm carburetor cleaning is far more effective.

When should I replace instead of clean?

If the carburetor body is badly corroded, threads are stripped, or the cost of a rebuild kit approaches that of a new carb, replacement may be more economical. However, in many small engines, a rebuild kit with new diaphragm, gaskets, and needle can restore performance at low cost.

Do fuel additives replace carburetor cleaning?

Fuel system cleaners can reduce varnish buildup and help keep jets cleaner, but they cannot fully dissolve heavy deposits in a neglected carburetor. Think of additives as a preventative tool that complements, not replaces, periodic physical cleaning small engine carburetor maintenance.

What if the engine still runs poorly after cleaning?

If symptoms remain after a careful cleaning, check compression, ignition (spark plug and coil), and for air leaks at gaskets or crank seals. On diaphragm carbs, also verify that the new diaphragm is installed in the correct orientation and that all passages truly flow freely with compressed air.

Ready to Put Your Engine Back to Work?

A clean diaphragm carburetor is the heart of a reliable small engine, and with a structured approach to clogged carburetor jets, cleaning tips, and a simple carburetor maintenance checklist, you can keep your tools starting easily and running strong season after season. Use this guide the next time your trimmer, blower, or chainsaw acts up, and then bookmark it so you can follow the same diaphragm carburetor cleaning steps for every small engine in your garage.
